Reaper 72 Belt Grinder

Description

Get 10% off belts and steel for 12 months with your grinder purchase!

Compact Footprint. Uncompromising Power. Highly Adaptable and Durable.

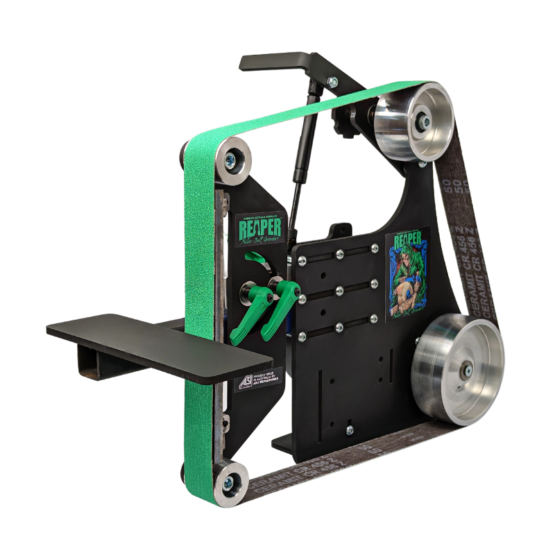

Introducing the Reaper 72 Belt Grinder 2 x 72” (50 x 1830mm). Australia-made to meet our exacting standards. Compact, yet uncompromising on power and with a longer platen that makes flattening blades, handle blocks and other items easier and more accurate. Versatile, compatible with a range of accessories, adjustable without the need for additional tools and highly durable. Compared to other belt grinders on the market, it holds its own. This is one epic machine at a super budget-friendly price point.



Standard Reaper 72 Belt Grinder Inclusions:

• 2 x 72″ (50 x 1830mm) belt grinder body
• Flat platen and idler wheel assembly
• Belt grinder tool rest
• 2hp (1.5kw) motor and your choice of VFD – Artisan Essentials 3hp (2.2kw) or Techtop 3hp (2.2kw). Full comparison of these VFD options is located towards the bottom of this product page.
• 5% Off 40mm tool arms and related accessories when purchased in the same order as your Reaper 72 Belt Grinder. Note: discount will be displayed in your cart
• FREE Hermes Belt Kit with 10x assorted belts. This is enough to make your first 3 – 5 knives taking them from rough profiling and bevelling through to a 600 grit satin finish, as well as handle shaping
• FREE Reaper Belt Grinders – Unisex Tee. You can select your size in your cart
• FREE delivery to your door

Purchase Now And Get An Additional Freebie. Limited Time Only:

• FREE 1/2 Sheet of 15N20 steel (2.4 x 400 x 600mm) – RRP$99!

* All freebies will be displayed in your cart.

Australian-made

Support local businesses and jobs with this Australian-made belt grinder. Manufactured in Victoria for Gameco Artisan Supplies by ARJ Metalworks, a leader in belt grinders. Local production allows us to meet our exacting product standards while providing locally based service and support.



Smaller Footprint

With a footprint only slightly larger than a typical 2 x 48” belt grinder, you can now experience all the benefits of a leading 2 x 72” belt grinder in less workshop space. Measuring just 580mm (front to back) x 330mm wide, the Reaper 72 is one of the most compact interchangeable accessory belt grinders available.

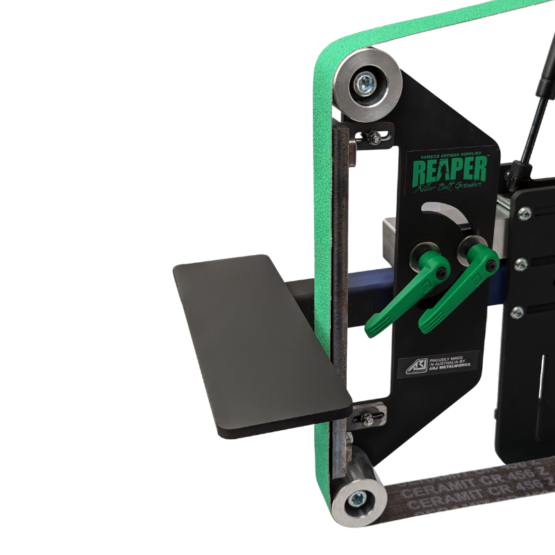

Longer Platen

At 300mm, the Reaper 72 has one of the longest platens of any interchangeable accessory belt grinder on the market. Flatten blades, handle blocks and other items easily and accurately. The larger surface area allows more material to contact the belt with consistent, even pressure.

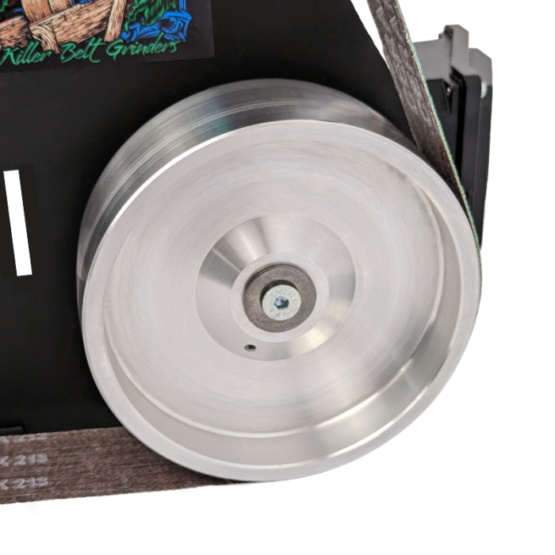

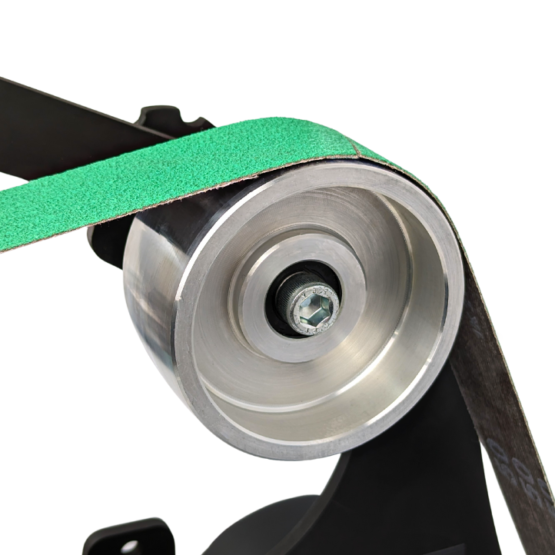

All Metal Wheels

Precision machined aluminium wheels offer improved wear resistance and longer service life. Slightly crowned, these wheels ensure excellent tracking and stability while you grind. Aluminium wheels have become the industry standard due to their high durability and will assist in reducing your maintenance costs over the life of your belt grinder.



Fast Speeds

Achieve higher belt speeds without sacrificing torque with the large 150mm aluminium drive wheel, combined with the variable speed drive. Faster belt speeds will give quicker stock removal and allow you to attain better performance from your ceramic belts.



Accurate Tracking

The Reaper 72 has belt tracking on par with the world’s best. The tracking wheel pivots in line with your belt, providing excellent tracking accuracy and stability, while minimising twisting and stretching of the grinder belt. Tracking is easily adjusted using the large handwheel and will remain steady even during heavy grinding.



Versatile

The Reaper 72 accepts standard 40mm and 1.5” square tool arms, giving you access to a huge range of accessories from leading manufacturers. This includes all current 40mm tool arms and related accessories in our range, as well as an exciting new range of accessories coming soon.



Powerful Variable Speed

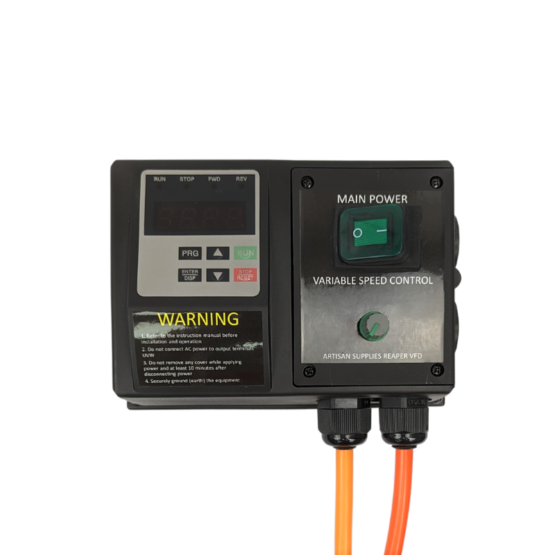

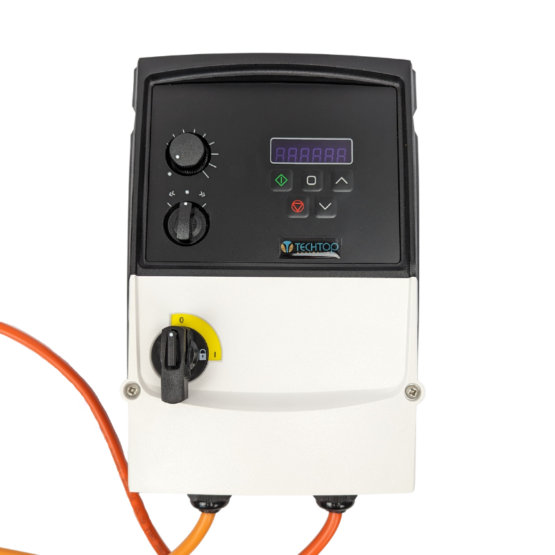

A 2hp (1.5kw) motor comes prewired with your choice of two VFDs, allowing you to run a powerful 3-phase motor from a standard household power point (240v 10a). Choose between our budget-friendly, compact Artisan Essentials VFD, or our premium UK-made Techtop commercial-grade VFD. Both VFDs offer a high IP rating for use in dusty environments and are rated for 3hp (2.2kw) maximum output, making them ideal for this belt grinder.



Tool-free Adjustment

Make adjustments and accessory changes quickly and easily using the German-made Kipp adjustable machinery handles, which eliminate the need for additional tools.



Plug and Play

Prewired, pre-programmed and painted. Mount your motor and drive wheel, put on a grinding belt from the included free abrasive belt kit, and you will be up and grinding in no time.



VFD Comparison	Artisan Essentials VFD	Techtop VFD
Input power	240V 10A single phase	240V 10A single phase
Runs on standard domestic powerpoint	Yes	Yes
Drive capacity	3.0hp/2.2kW three phase	3.0hp/2.2kw three phase
IP Rating	IP65	IP66
Reverse direction	Menu buttons	2-way switch
Lockable power switch	No	Yes
Premium UK manufacture	No	Yes
Fancy light-up green power switch	Yes	No
Reaper 72 Belt Grinder including VFD	$2,199	$2,499
