Electronic Rockwell Hardness Tester
AU $2,950.00
- Description
- Additional information
- Reviews (1)
Description

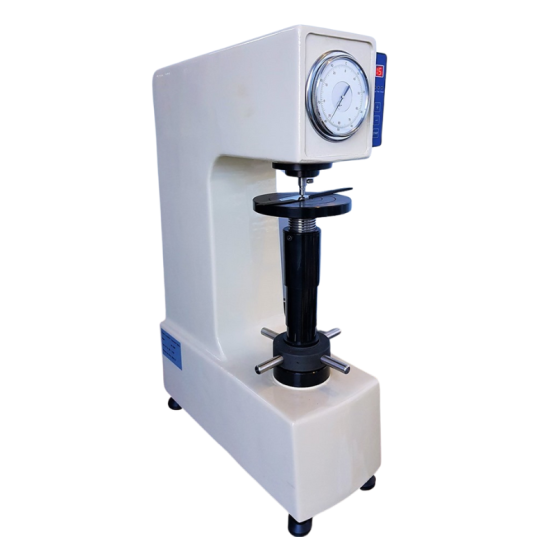

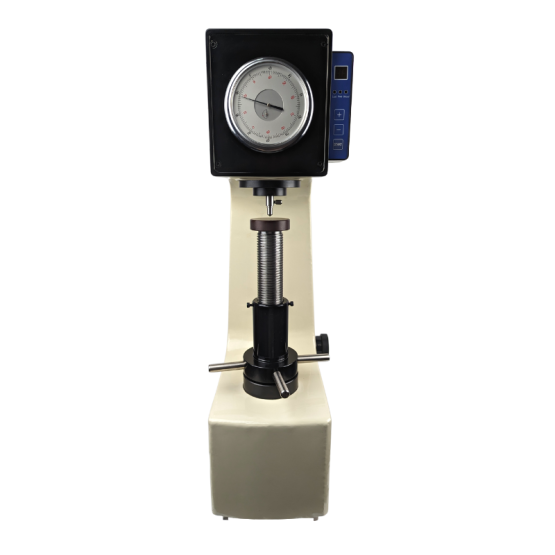

Electronic Rockwell Hardness Tester
Bench mounted electronic Rockwell hardness tester, the absolute best way to test hardness in your workshop. Offers in house guarantee that you have achieved the desired heat treatment or the flexibility to experiment with new methods of hardening and tempering. Gives you the peace of mind to accurately quote blade hardness to your customers.

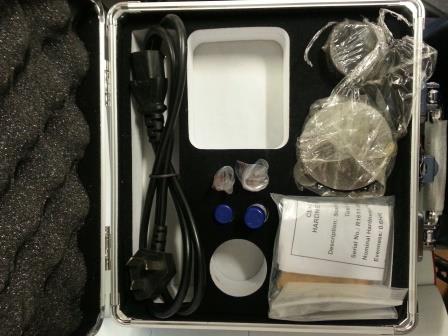

Comes with:
- Australian power cable

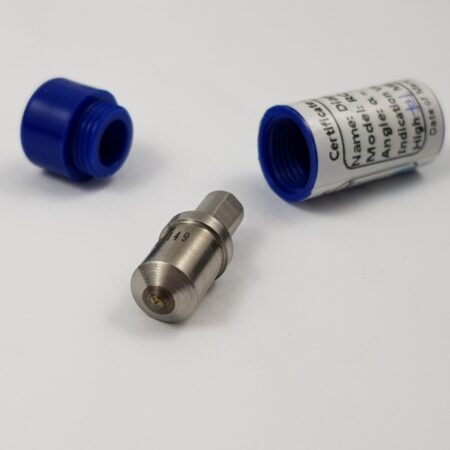

- Diamond indenter for Rockwell C hardness testing
- Ball indenter for Rockwell B hardness testing
- Spare fuse
- V block anvil for holding round jobs
- Small flat anvil
- Wide flat anvil

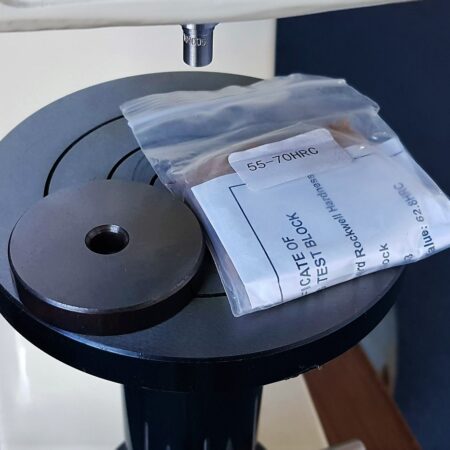

- Rockwell calibration test block
- Carry case for spare parts
- Product certificate
Technical Specifications:
| Hardness Scale | HRA, HRB, HRC, HRD, HRF, HRG |
| Initial Test Force | 98.07 N (10kgf) |

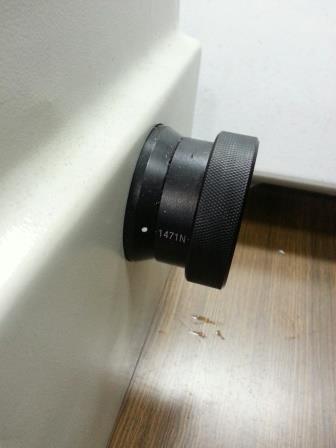

| Total Test Force | 588.4N (60kgf), 980.7N (100kgf), 1471N (150 kgf) |
| Test Force Selection | Manually |
| Test Force Control | Automatic (Load / Keep / Unload) |

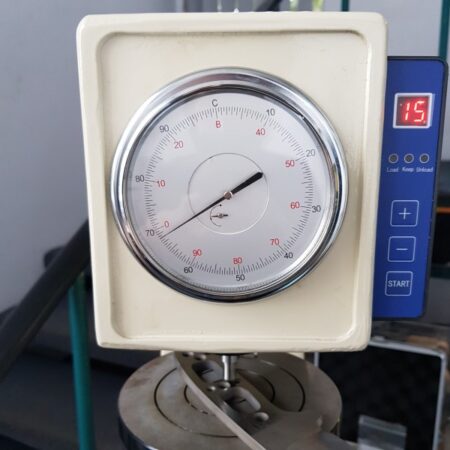

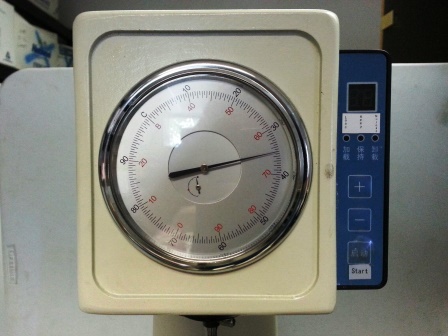

| Indicator Scale | C: 0-100 , B 30-130 |
| Measuring Range | HRA: </= 95, HRB: 20-100 HRC: 20-70 |
| Hardness Accuracy | 0.5 Rockwell |
| Accuracy Requirements | Meet EN-ISO6508 and ASTME-18 |
| Max. Height of Specimen | 200mm |
| Distance of Indenter Centre to the instrument Body | 152mm |
| Operating Temperature | 10-38 degrees celsius |
| Power | Single Phase AC 220V, 1A, 50-60HZ |
| Dimension of Body | 460 L x 188 W x 678 H |
| Weight | 80kg |
Specifications as shipped: 94kg 870 x 560 x 410mm
Additional information
| Weight | 94 kg |
|---|---|
| Dimensions | 87 × 56 × 41 cm |
| Payment Options | Pay in Full, Pay a Deposit |
1 review for Electronic Rockwell Hardness Tester
Add a review
You must be logged in to post a review.
Tony –
Total step up from using files and guessing the hardness.
Now I can guarantee my customers the hardness of my knives.
